JTAGulator – On-Chip Debug Discovery Tool

Description

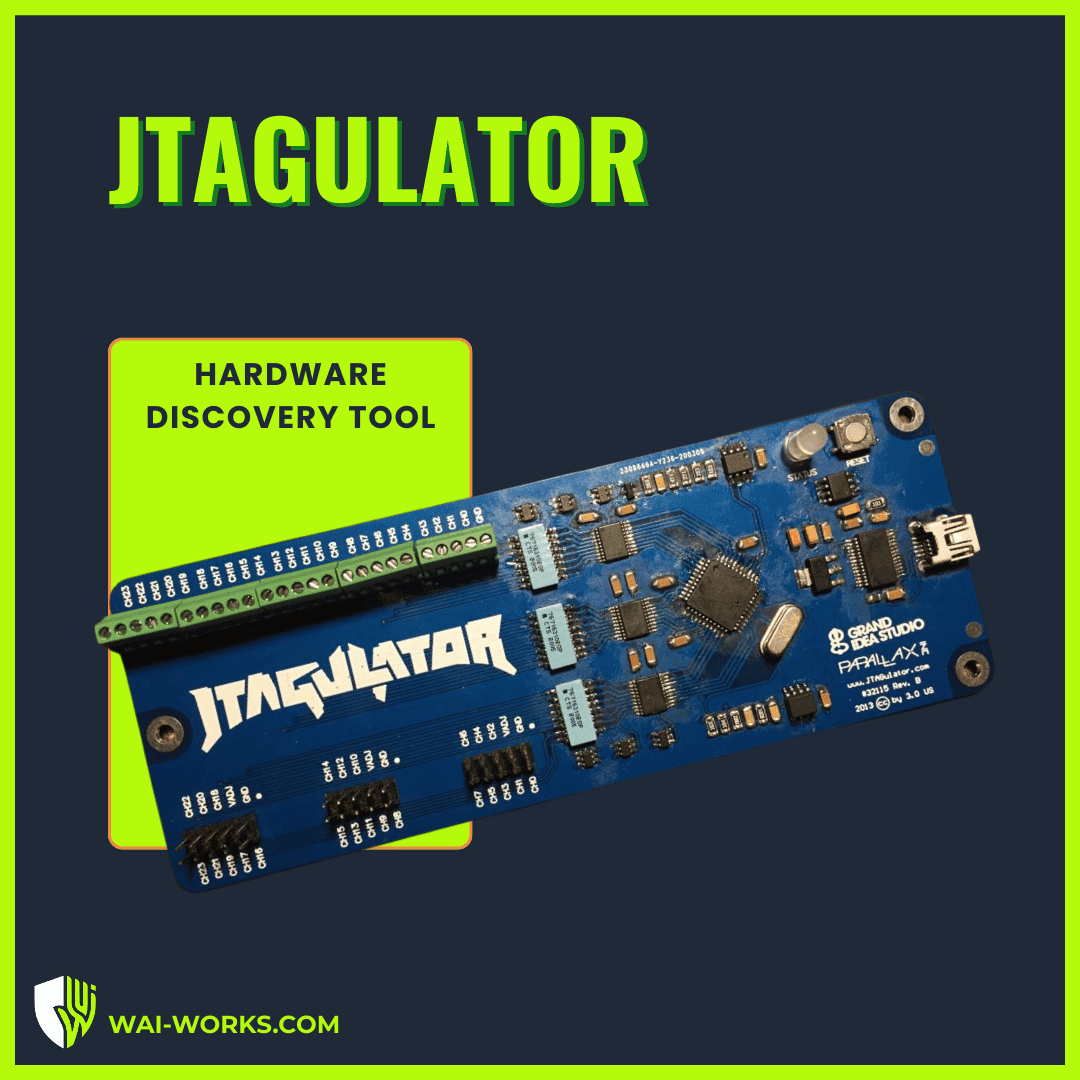

JTAGulator

The JTAGulator is a purpose-built discovery tool that identifies JTAG and UART pinouts on unknown boards automatically, saving hours of manual probing during hardware reverse-engineering.

It brute-forces channel assignments across up to 24 I/O lines and reports the working combinations, turning a tedious guessing game into a quick, reliable step. It’s a staple of any serious hardware-hacking bench.

Key features

• Automatically locates JTAG (IEEE 1149.1) pinouts
• Identifies UART pins and detects baud rates
• Up to 24 channels at adjustable target voltages
• USB serial control from any terminal

What’s in the box

JTAGulator, jumper leads, USB cable.

Authorised use only. This equipment is sold for legal security research, education and testing on systems you own or have explicit written permission to assess. You are responsible for complying with all applicable laws in your jurisdiction.
